SKU: PSU901T6NF Solar Tire Pressure Built-in Sensor for 6-Wheel Trucks, RVs, Trailers, Buses, and Engineering Vehicles with 6-38 Tire Count Display, Solar USB Charging, 0-13Bar Monitoring 24h,4.0/5.0 Bluetooth External Tire Pressure Sensor, APP TPMS Digital Tire Pressure Monitoring System, Tire Pressure Control Safety Alarm, Solar Car Digital Clock / Time / Date and Internal Temperature Display, Real-Time Monitoring of High or Low Tire Pressure, Data Detection
product description

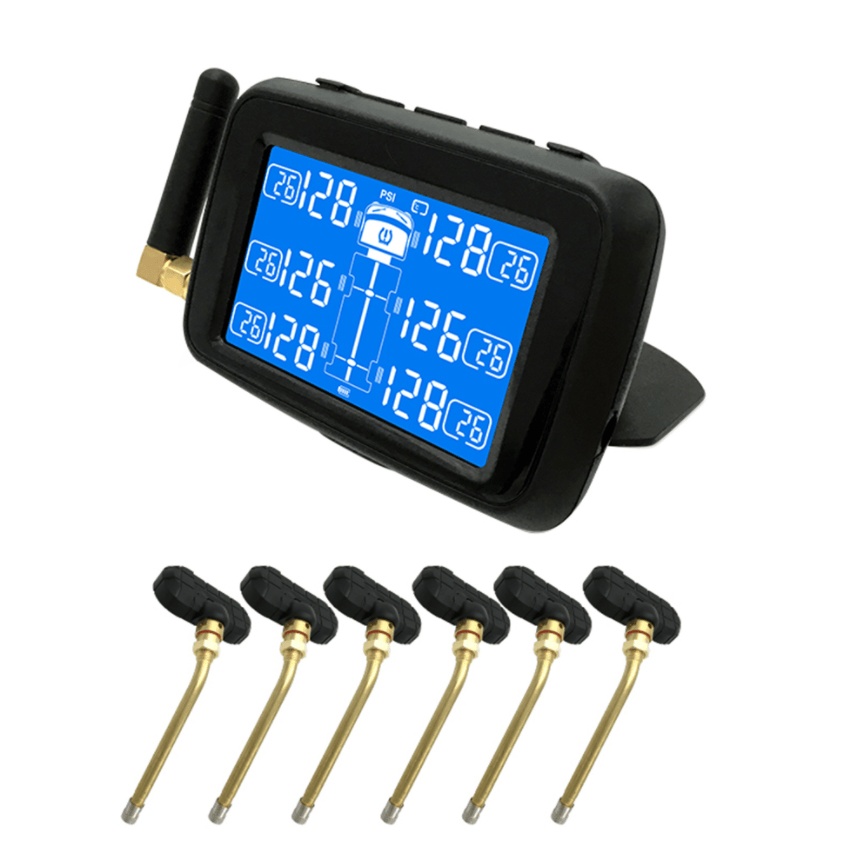

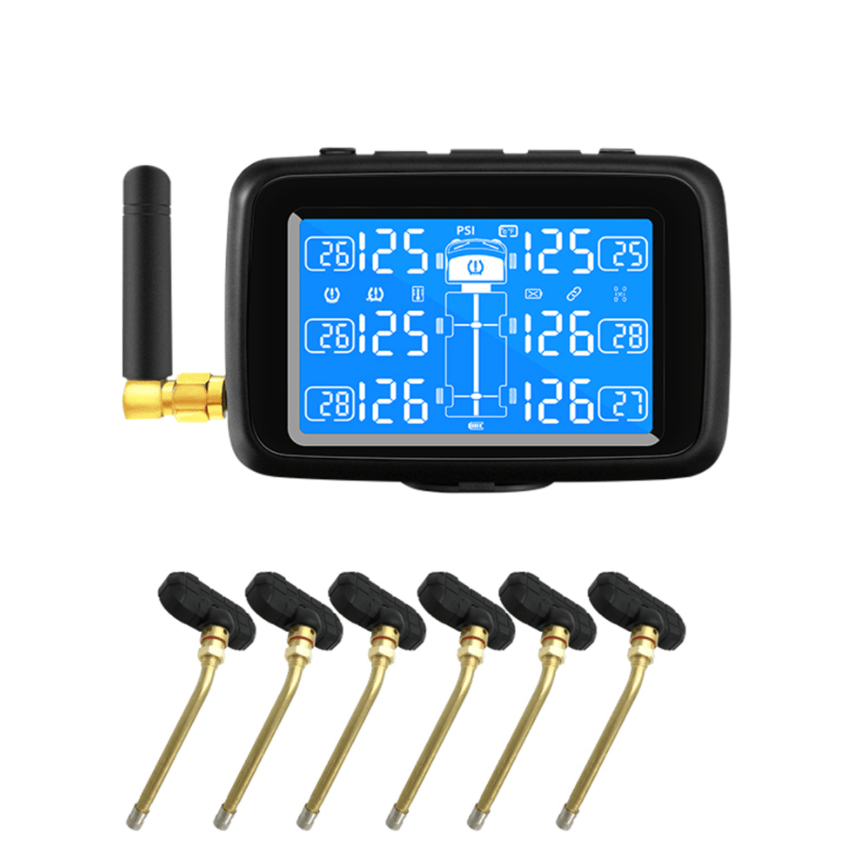

Sales components: host monitoring display *1+ tire pressure sensor *6

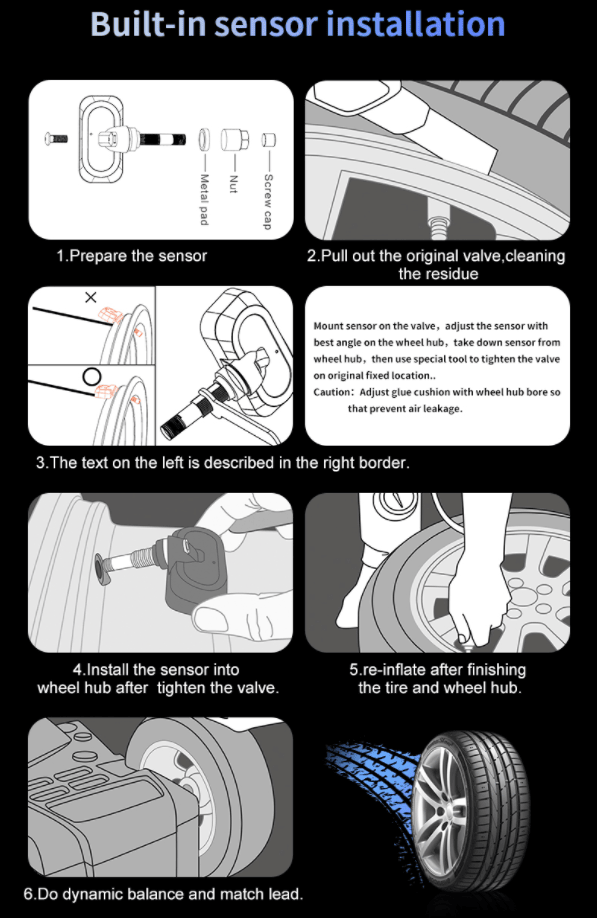

Installation type: built-in tire pressure sensor
Material: ABS+PC
Color: Black
The host monitors the display parameters
Number of built-in sensors: 6pc
Working temperature: (-20℃-80℃)
Storage temperature: (-30℃-85℃)
Input voltage: DC8V-30V
Size: 86*57*26mm
Weight: 96g
Color screen display: HD LCD
Receiver sensitivity: -115dBm
Transmit power:>8dBm
Main control chip: DA14531
Working temperature: -20°C- +85°C
Charging mode: Solar / USB / built-in battery
Tire pressure sensor parameters
Multi-wheel values: 6-38 tires
Sensor model: NF
Working temperature: (-20℃-100℃)
Storage temperature: (-20℃-100℃)
Pressure range: 0-200psi (0-15bar)
Pressure accuracy: ±1.5PSI(±0.1bar)
Temperature accuracy: ±3℃
Battery model: CR2450
Frequency: 433.92MHz
Battery life: 5 years
Size: height 26mm; diameter 28mm
Weight: 86.5g (including valve)
Power supply: OBD, ACC, USB
Product certification: CE FCC ROHS UKCA

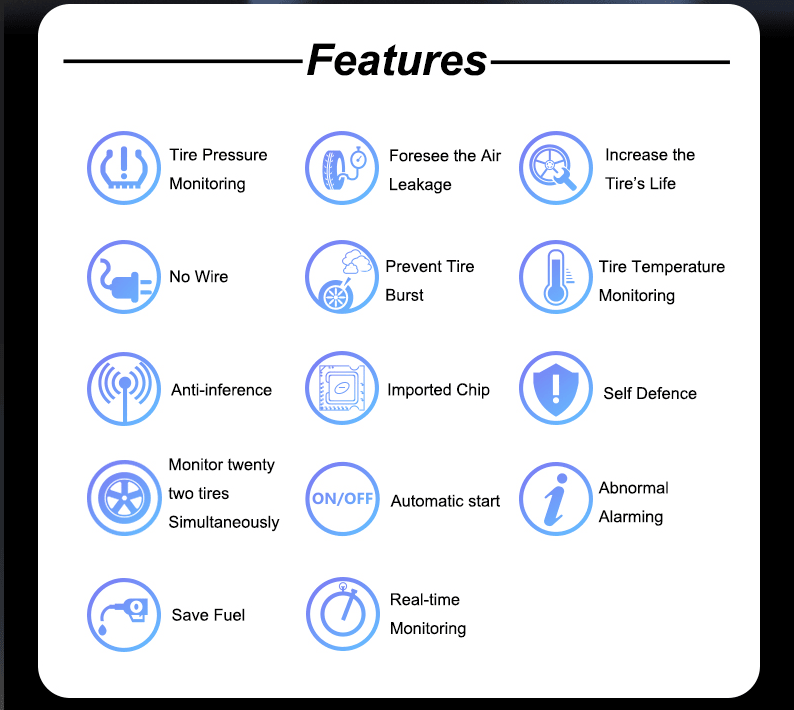

Product features
1. Up to 6 tires can be monitored and tire pressure and temperature displayed simultaneously.
2. Motion sensitive monitor with blue screen to reduce power consumption.
3. High precision monitoring of temperature and pressure,
Display tire sensor data in sequence.
4. Save gasoline, prevent air leakage, reduce tire wear, balance tire pressure, ensure safe driving.

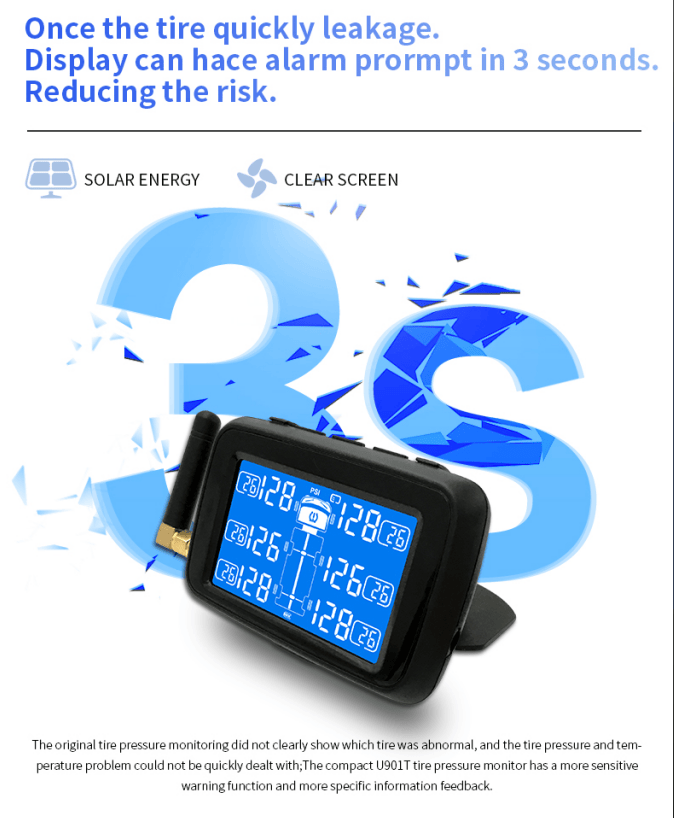

5.RF wireless technology, which can automatically alarm when the tire pressure and temperature are abnormal.
6. Two pressure units "PSI, BAR" and two temperature units "℃, ℉" are available for selection.
7. Support tire position exchange function.
8. Sensor protection class: IP7.
9. Two axes can be set to alarm values on the display screen.
10. Special sensors for heavy trucks, mining vehicles, etc.
11.Infenion Chipsets.
keyword
Tire pressure sensors, Bluetooth tire pressure monitors, automotive tire pressure monitors, tire anomaly alarms, air compressors and inflaters, fenders and splash guards, tire maintenance, tire covers, tire pressure gauges, tire pressure monitoring systems, monitoring tire pressure sensors, valve stems and valve caps, tire repair kits, tire repair tools, hub bearings, wheel alignment and balance, wheel accessories, tire accessories, tire and wheel repairs, digital tire pressure gauges for cars, tire pressure detection tools for cars, buses, trucks, tractors, bicycles, motorcycles
Packaging information
Package size: 16.5*22*16.5cm
Net quantity of goods: 0.69kg
Commodity weight: 0.80kg
