EAN:
SKU: PST601PSU6 Solar Tire Pressure Sensor, for 6 Wheel Trucks, RVs, Trailers, Buses and Construction Vehicles, with 6-38 Tire Count Display Relay Signal>40m Solar USB Charging 0-13Bar Monitoring 24h 4.0/5.0 Bluetooth External Tire Pressure Sensor APP TPMS Digital Tire Pressure Monitoring System Tire Pressure Control Safety Alarm Solar Car Digital Clock/Display Time/ Date & Interior Temperature Car Tire Pressure Sensor Real-time monitoring of tire pressure, high or low, with detection data
Product DescriptionSales

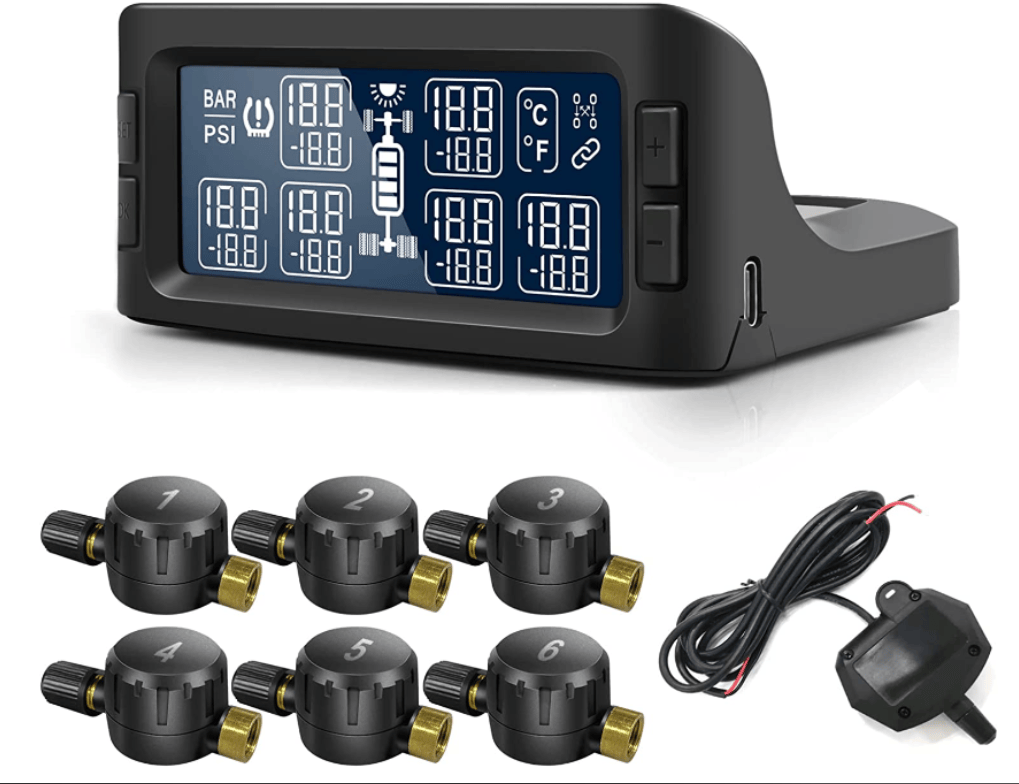

Components: Main Unit Monitoring Display*1 + Repeater*1 + Tire Pressure Sensor*6Mounting
Type: External Tire Pressure SensorMaterial
: ABS+PC
Color: Black
Number of sensors for monitoring and displaying parameters
: 6pcOperating
temperature: (-20°C-80°C)
Storage temperature: (-30°C-85°C)
Input voltage: DC8V-30V
Size: 4.3*1.97*0.6 inchesWeight
: 128g
Color screen display: HD LCD
receiver sensitivity: -115dBm
transmit power: >8dBm
main control chip: DA14531
operating temperature: -20°C to +85°C
Charging method: solar / USB / built-in battery
Tire pressure sensor parameters
Multi-wheel value: 6-38 tire digital display
Sensor model: SU
Working temperature: (-40℃~+105℃)
Storage temperature: (-40℃~+120℃)
Pressure range: 0~200psi (0~15bar)
Pressure accuracy: ±1.5PSI(±0.1bar)
Temperature accuracy: ±3℃
Transmit power: <10dbm@50Ω
Frequency: 433.92MHz
Battery life: 2 years
Battery model: CR1632
Size: 24*20mm
Power supply mode: OBD, ACC, USB
Product certification: CE FCC ROHS UKCA

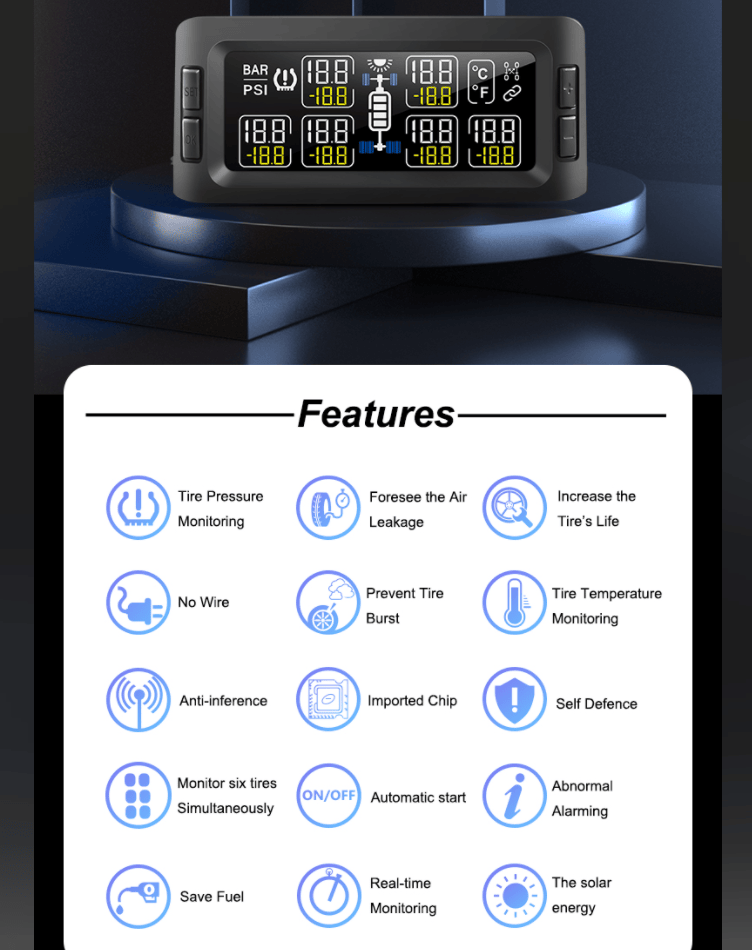

Product Features1.Solar
power generation is used with 6 external flow sensors and repeaters.
2.LED panel, equipped with additional mini USB charging port, supports 4 to 6 wheel display.
3. The LCD screen is fully displayed, so the data on the screen can be read very clearly in any situation.
4, High precision monitoring of temperature and pressure, can display 6 tires at the same time.
5, Save fuel, predict air leakage, reduce tire wear, balance tire pressure, and ensure safe driving.
6.RF wireless technology, automatic alarm when tire pressure and temperature are abnormal.
7. Two pressure units 'PSI, BAR' and two temperature units '°C, °F' are available.
8. Support tire position swap function.
9. Sensor waterproof rating: IP 7.
10. Equipped with Infenion chipset and explosion-proof battery.
11, The sensor battery can be replaced by the driver, and the sensor can replace the battery independently
Keywords:
automotive tire pressure sensor, bluetooth tire pressure monitor, automotive tire pressure monitor, tire abnormality alarm, air compressor and inflator, fender and splash guard, tire maintenance, tire cover, tire pressure gauge, tire pressure monitoring system, monitoring tire pressure sensor, valve stem and valve cover, tire repair kit, tire repair tool, wheel bearing, wheel alignment and balancing, wheel accessories, tire accessories, tire and wheel repair, automotive digital tire pressure gauge, automobile, bus, truck, Tire pressure testing tool for tractors, bicycles, motorcycles
Packaging information
Packing size
: 22*16*7cmNet
quantity: 0.49kgProduct
weight: 0.54kg
