EAN:
SKU: PSD550SWF Solar Tire Pressure Sensor for 6-Wheel Trucks, RVs, Trailers, Buses, and Engineering Vehicles with 6-38 Tire Count Display, Solar USB Charging, 0-13Bar Monitoring for 24h,4.0/5.0 Bluetooth External Tire Pressure Sensor, APP TPMS Digital Tire Pressure Monitoring System, Tire Pressure Control Safety Alarm, Solar Car Digital Clock / Time / Date and Internal Temperature Display, Real-time Monitoring of High or Low Tire Pressure, Data Detection
product description

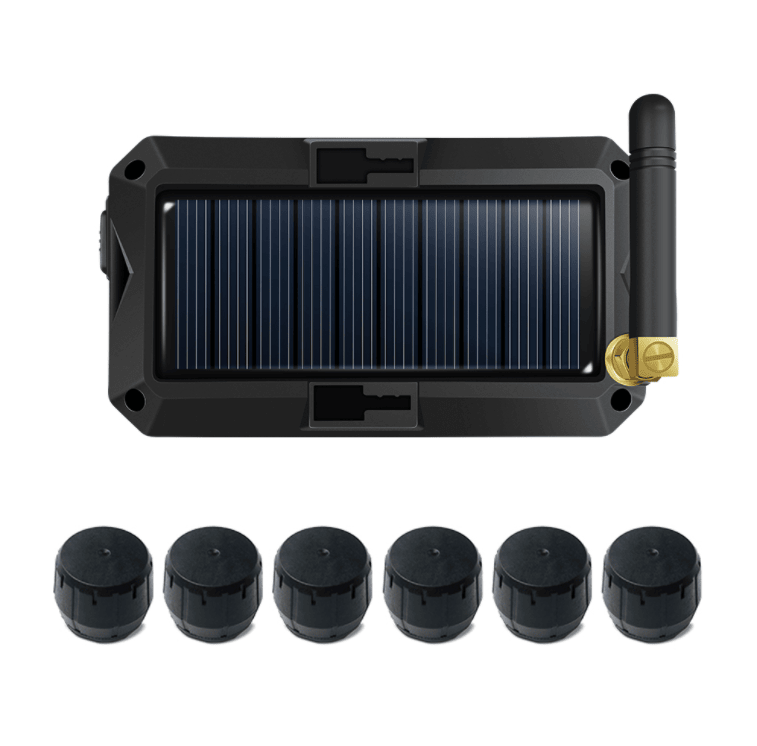

Sales components: host monitoring display *1 + tire pressure sensor *6
Installation type: external tire pressure sensor
Material: ABS+PC
Color: Black
The host monitors the display parameters
Number of sensors: 6pc
Working temperature: (-20℃~+80℃)
Storage temperature: (-30℃~ +85℃)
Input voltage: DC 5V
Frequency: 433.92MHz
Size: 100*57*20mm
Weight: 104g
Color screen display: HD LCD
Receiver sensitivity: -115dBm
Transmit power:>8dBm
Main control chip: DA14531
Working temperature: -20°C- +85°C
Charging mode: Solar / USB / built-in battery
Tire pressure sensor parameters
Multi-wheel value: 6-38 tire digital display
Sensor model: SU
Working temperature: (-40℃~+105℃)
Storage temperature: (-40℃~+120℃)
Pressure range: 0~200psi (0~15bar)
Pressure accuracy: ±1.5PSI(±0.1bar)
Temperature accuracy: ±3℃
Transmit power: <10dbm@50Ω
Frequency: 433.92MHz
Battery life: 2 years
Size: height 15mm; diameter 23mm
Weight: 9.5g
Power supply: OBD, ACC, USB
Product certification: CE FCC ROHS UKCA

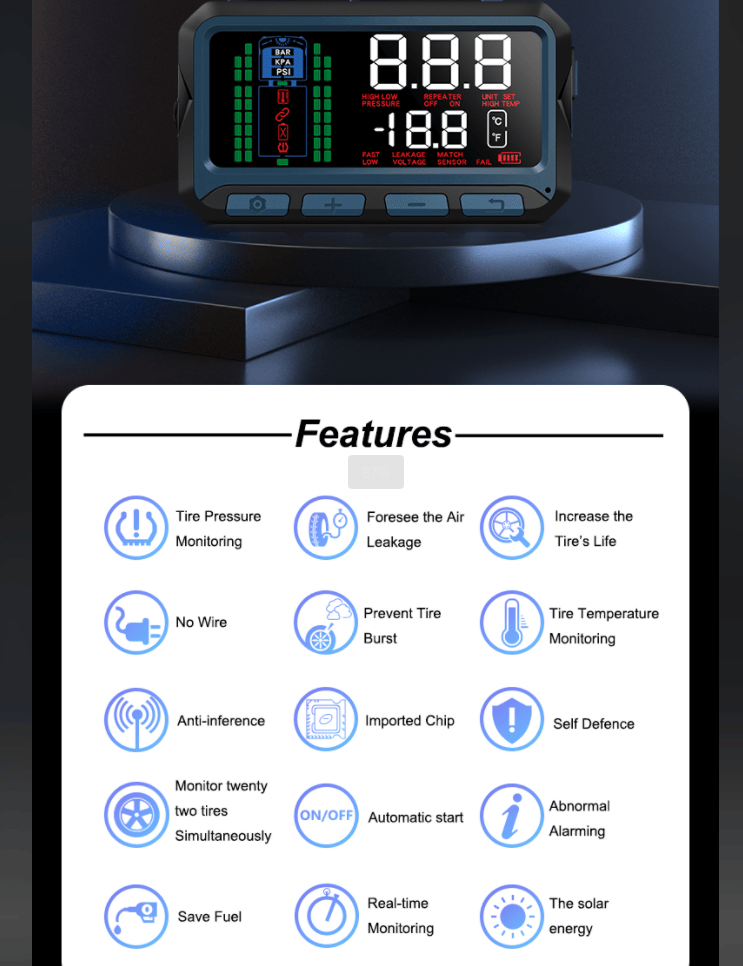

Product features
1. Large LCD backlight adjustment-easy to read in any light environment.
2.LED panel with an additional mini TYPE-C port for charging, supporting 4 to 6 wheel display.
3. Multiple installation modes, equipped with two supports for a wider view. It has two modes of solar energy and TYPE-C, which can achieve efficient charging.
4. High precision monitoring of temperature and pressure, showing 4 or 6 tires at the same time.

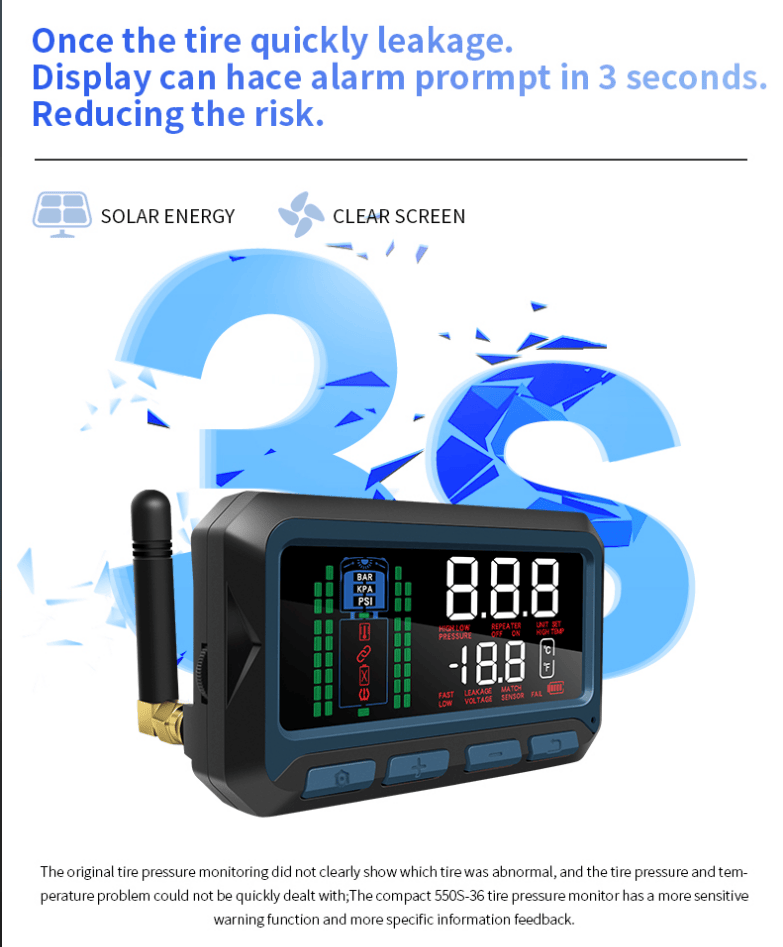

5.7 alarm modes and real-time display: high and low pressure alarms / high temperature alarm / sensor low battery alarm / rapid tire leak alarm / tpm sensor data loss alarm / low battery display alarm. Real-time pressure and temperature displays for six tires allow you to focus on long-distance travel or freight. (Factory Settings: High pressure alarm: 116Psi, Low pressure alarm: 29Psi, High temperature alarm: 149℉)
6.RF wireless technology, when tire pressure and temperature are abnormal, it can automatically alarm.
7. Monitoring is reported in a variety of units such as PSI, BAR, F° and C°.
8. Support tire position exchange function.
9. Waterproof grade of sensor: IP6 7.
10. Equipped with Infenion chipset and explosion-proof battery.
11. The sensor battery can be replaced by the driver, small size, light weight, high tire pressure sensing accuracy (error range not more than 2 PSI), easy to install.
12.550S Suitable for all sizes of tractor, motorhome, motorhome, boat trailer, school bus and commercial transport vehicles.
keyword
Car tire pressure sensors, Bluetooth tire pressure monitors, automotive tire pressure monitors, tire anomaly alarms, air compressors and inflaters, fenders and splash guards, tire maintenance, tire covers, tire pressure gauges, tire pressure monitoring systems, monitoring tire pressure sensors, valve stems and valve caps, tire repair kits, tire repair tools, hub bearings, wheel alignment and balance, wheel accessories, tire accessories, tire and wheel repairs, digital tire pressure meters for cars, tire pressure detection tools for cars, buses, trucks, tractors, bicycles, motorcycles
Packaging information
Package size: 19*13*5cm
Net quantity of goods: 0.43kg
Commodity weight: 0.52kg
