SKU: PSC300 Solar Truck Tire Pressure Monitoring Sensor, Six Tire Pressure Control Safety Alarm, Digital Tire Pressure Monitoring System, Built-in Tire Pressure Sensor, 300mAh, 4.0/5.0 Bluetooth Sensing Monitoring, Solar Car Digital Clock/Display Time/Date and Internal Temperature, Car Tire Pressure Sensor, Real-time Monitoring, Over-Tire Pressure, Under-Tire Pressure, Detection Data iOS/Android/iPad Independent APP
product description
Sales components: Solar monitor + tire pressure sensor 6pcs
Installation type: external tire pressure sensor
Material: ABS+PC
Color of the product: black
Solar monitor
Lithium battery capacity: 300mAh
Working voltage: 3.7-5V
Bluetooth communication: 4.0/5.0
Display mode: APP
Color screen display: HD LCD
Pressure range: 0-8bar / 0-116psi
Working frequency: 433.92MHz±20.00MHz
Work pressure: 0-99 pounds per square inch
Working current: ≤ 6 mA (bright); ≤ 4 mA (black)
Main control chip: DA14531
Working temperature: -20°C + 70°C
Storage temperature: -30°C + 80°C
Charging mode: solar +USB

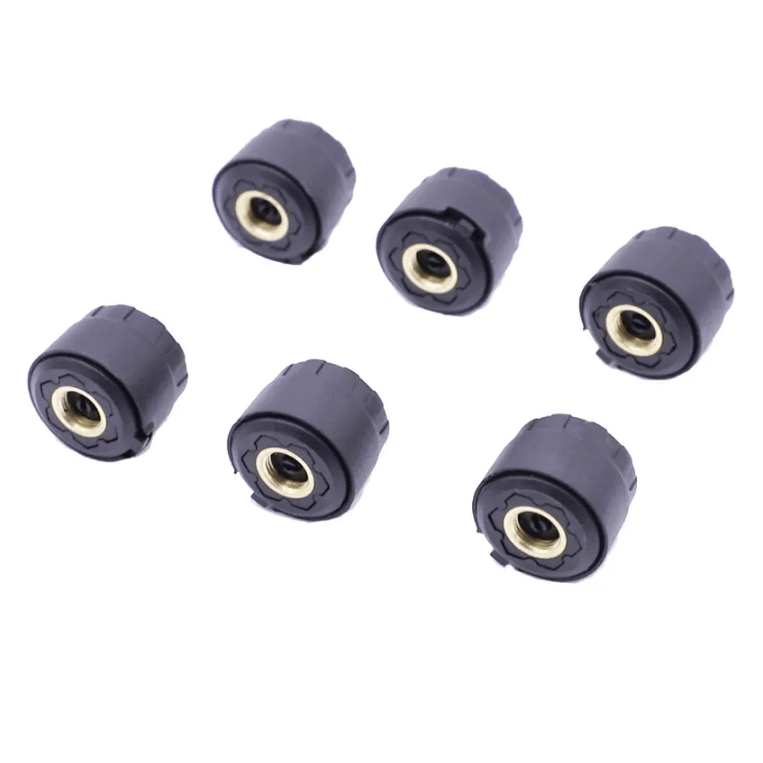

Tire pressure sensor
Battery life: 24 months
Working voltage: 2.0~3.6V
Storage temperature: -30°C-90°C
Working temperature: -30°C-85°C
Temperature resolution: ±2°C (25°C)
Pressure range: 0-3.5 bar
Pressure resolution: ±0.1 bar
Response time: ≤5s
Maximum pressure: 8BAr
Default pressure: 29PSI-43PSI (adjustable)
Pressure accuracy: ±0.1bar / ±1.5psi
Waterproof grade: IP67
Transmission power: ≤ 10 dB
Transmit frequency: 433.92 MHz
Tire pressure monitoring range: 0-3.5bar
Tire pressure monitoring accuracy: 10kPa
Button batteries: CR1632 (removable and replaceable)
Service life: 1-2 years typical value
Power supply mode: OBD, ACC, USB
Product certification: CE FCC ROHS UKCA
Product features
1. Dual charging for solar energy and USB, LCD color display, automatic brightness adjustment
2. Real-time monitoring of tire pressure and temperature, six tire data displayed simultaneously
3. Wireless transmission technology, 100% DIY installation
4. Built-in rechargeable explosion-proof lithium battery, Panasonic CR1632
5. G-sensor vibration wake up, solution: Infineon
6. Support 'BAR' and 'PSI' units are optional
7. Wireless displays can be placed anywhere.
8. Original chip (more stable signal)
9. Tire pressure alarm (real-time monitoring)
10. Tire temperature alarm (real-time monitoring)
11. Solar charging (reduce energy consumption)
12. Wireless transmission (easy installation)
Solar car digital clock with LCD display of time, date and internal temperature.
Automatic solar charging: The tire pressure monitoring system is of higher quality and the solar lithium battery panel is more durable (Micro USB can be used to charge even when there is no sunlight).
Automatic backlight adjustment: RV fetal pressure monitoring system displays data clearly in low light or bright light environment. Data from 6 sensors are displayed simultaneously for real-time monitoring. Suitable for 4/6 wheel vehicles.
Advanced tire pressure monitor warning device: increase time and temperature display, with leak alarm, high/low pressure alarm, high temperature warning, TPMS applicable RV, travel trailer, truck, tow camping car, RV, SUV, etc.
Suitable for 6 tires: The trailer TPMS can simultaneously monitor the temperature and pressure of 6 tires with high precision in real time, and can automatically change the corresponding data. The LCD display mode ensures high resolution and high definition.
Precise sensor connection: The wireless solar TPMS uses the American Infineon chip design, providing better, more stable, and more accurate signal transmission. The sensor is designed for a lightweight design, making it easy to install. It supports tire position switching functionality. IP5K4K The sensor's water resistance rating can protect against various harsh weather conditions
keyword
Motorcycle tire pressure sensor, Bluetooth tire pressure monitor, car tire pressure monitor, tire abnormal alarm, air compressor and inflator, fender and splash guard, tire maintenance, tire cover, tire pressure gauge, tire pressure monitoring system, tire pressure sensor, valve stem and valve cap, tire repair kit, tire repair tools, hub bearing, wheel alignment and balance, wheel accessories, tire accessories, tire parts, tire and wheel repair, automotive tire pressure digital instrument, car, bus, truck, tractor, bicycle, motorcycle tire pressure detection tool
Packaging information
Product size: 20.5*13.8*5.2cm
Packaging size: 20.5*13.8*5.2mm
Net quantity of the product: 275g
Gross quantity of the product: 440g
